Evolution of the Strategy Map

1986-1991©

by

Arthur M. Schneiderman

NOTE:  You may prefer viewing this presentation in

MS Word, PowerPoint or Adobe Acrobat format.

click here to select alternate format

Presentation date:

Venue:

Notes

Various

Various

Current

A strategy map is a visual tool that helps in telling the balanced scorecard "story".  This story provides the answer to the question in the back of every employees mind: "why are we doing this?"  To achieve the aggressive goals that are identified on the scorecard requires an effort on the part of employees that is above and beyond their daily job.  Much individual creativity is needed to "make it happen."  A compelling, logical story provides the necessary motivation.

One current model, called a strategy chart or map, borrows from a framework developed in System Dynamics and popularized by the proponents of systems thinking and organizational learning: the causal-loop diagram.  It superimposes this diagram on a fixed skeleton that spans the financial-customer-internal-learning and growth system of classification.  It then provides a generic causal linkage: "by doing/improving this (a learning and growth metric), we improve our internal processes as evidenced by improvement in this (an internal process metric), which in turn improves this customer requirement (a customer metric) which leads to improved financial performance (a financial metric).  Analog took a more holistic view in developing the one slide summary of its balanced scorecard story.



Slide 1



Slide 2

c. October 10, 1986

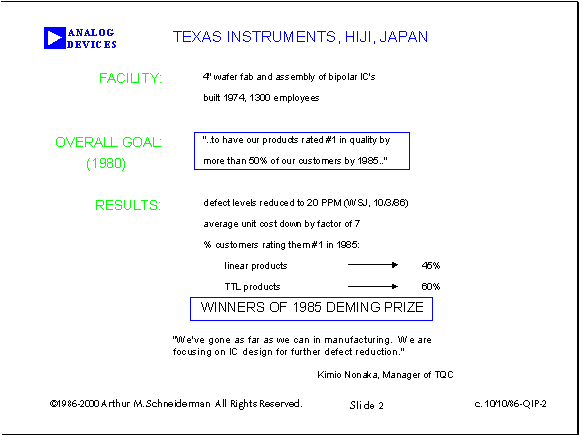

Analog's tool for telling the scorecard story originated in 1986; upon my return form Juran's Impro 86.  I was inspired by a booth and presentation given by Texas Instruments' Hiji Japan wafer fab.  I summarized their story on this single slide.



Slide 3

From a hand drawn slide presented October 14, 1986.

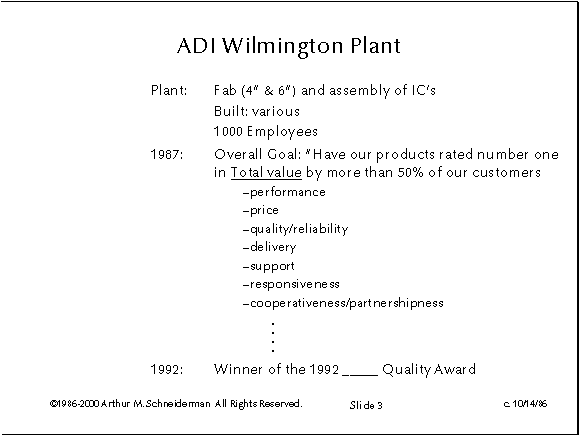

I created this fictitious version were I adapted the original to Analog's largest, and a strikingly similar, wafer fab.  The message was clear: here's a possible future state for Analog, and ... someone's already there.  This instantly reduced my proposal from a consultantís pipedream to a realistic possibility.  The excitement that these two slides produced, prompted me to create a third version that applied to Analog's IC operations in total.



Slide 4

From hand drawn slide presented October 14, 1986.

We understood that the key to our strategic success was to be the vendor of choice to our customers; to be number one on their list of favored suppliers.  But how do we get there and stay there?  This was our fledgling attempt to answer that question.

Over the next few weeks, this slide evolved into a two slide version:  the first describing what was possible by 1992 (which I called the External Perspective), and the second one addressing how we could do it (which I called the Internal Perspective).  The combination of possibilities, the resulting opportunities, and the required framework served as the basis for this early story.



Slide 5



c. October 28, 1986.

This and the following slide resulted from the meeting of 10/14/86 between Ray, Jerry and me, and incorporates our improvement of the previous two strawman proposal slides.

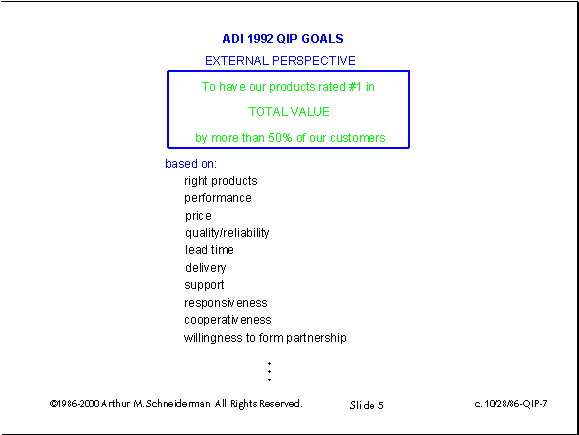

The external perspective is the way that ADI appears to its customers.  It is the way that they would describe us if they were asked to give a reference.  All of these attributes are measurable by the customer.



Slide 6

c. October 28, 1986.

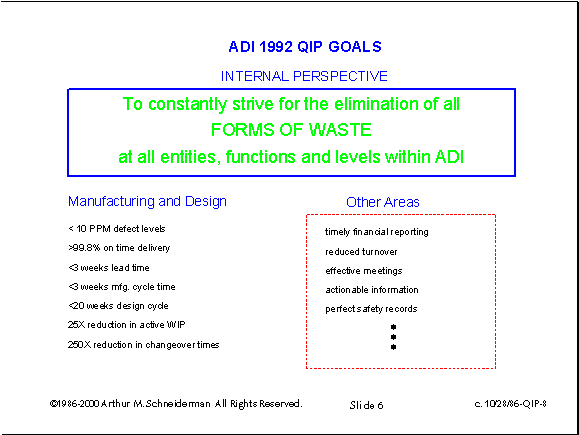

The internal perspective identifies the means that were required to achieve the results of the previous slide.



Slide 7

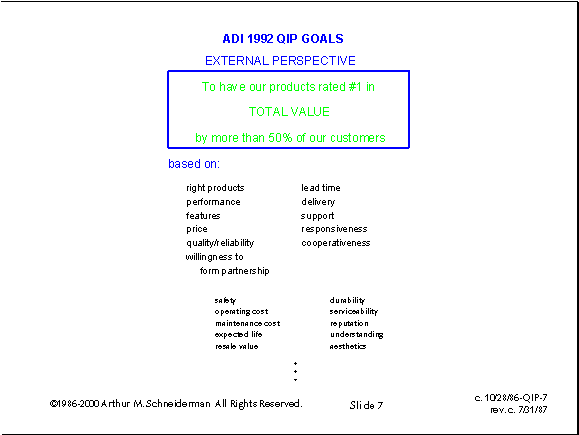

As the scorecard story was told, more customer purchase criteria were identified.  To facilitate buy-in, I classified all suggestions as current or future and added them to the list.  I postponed the culling process to some future date when we had achieved broader consensus.



Slide 8

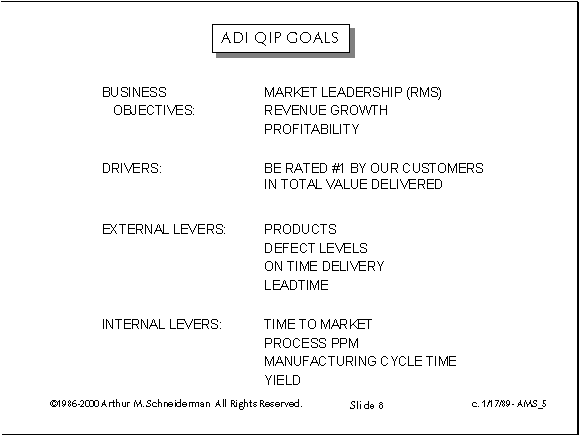

In January of 1989, I combined the previous two slides onto a single slide, pared the drivers down to the vital few and added the three business objectives.



Slide 9

By April of 1990, the external perspective had to be broadened to include the newly emerging requirements of price and responsiveness.

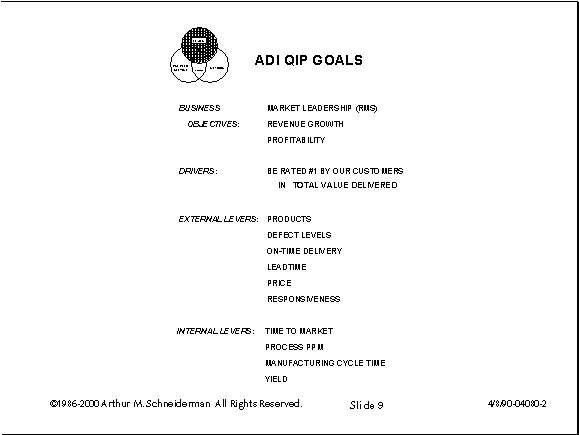

Slide 10

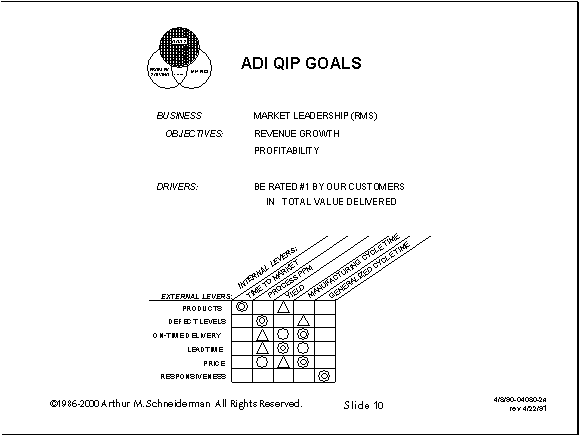

My final version of this slide, created in April of 1991, provided the visual for many presentations.

The symbol in the upper left hand corner of this slide is the QIP logo.  Throughout my tenure at Analog, the management group continually asked and re-asked the question "what are the most important things that we need to do to delight all of our stakeholders, taken as a group?"  The highest common denominator of the many answers to that question always remained the three business objectives stated on this slide.  And over that period, the principal bottleneck in achieving those business objectives was customer satisfaction.

Now today things may be different at Analog.  More than a hundred fold increase in stockholder value (that's right folks, 11/2/90 stock price: 15/16ths (split adjusted), 6/19/00: 98) has been created and customers are lining up to buy their products (leadtimes on some released products are being quoted in years, rather than weeks).  So employee satisfaction, given the tight labor market and the allure of the current batch of high tech startups, might have risen to the top of the list.  But then, it was the customer, the customer, the customer.  We also knew that customers were choosing suppliers on this elusive basis called value.  The biggest challenge we faced was defining what they meant by it, and that marked the principal way in which the scorecard story evolved between 1986 and 1991.

But we also began to recognize that there was not a simple connection between what we had identified as the external levers (the importance weighted gaps in meeting customer requirements) and the internal levers (the internal processes having the greatest effect on closing these gaps).  The stumbling block in making the connection was the absence of a one-to-one relationship between internal and external levers.  In other words, the internal lever could not be actuated independently.  For example, a person working on yield improvement knew that their efforts would impact several external levers.  They also new that those working on other internal initiates could do the same.  They audit trail became muddy and so did the resulting story.

As a system dynamics student since the early 1970's, I was well aware of causal-loop diagrams.  But I believed then (and believe now) that they are of very limited value in clarifying these types of multiple relationships.  Furthermore, and most importantly, they gave no indication of the strength of the relationships.  And so I turned to one of the of 7 Management and Planning (7MP) Tools developed in Japan in the late 1970s: the Matrix Diagram.  It allowed me to pictorially capture not only the existence of a relationship, but also its strength.  The needed decoder ring was that a circle-within-circle was used to symbolize a strong relationship, a single circle alone was for a moderate relationship, a triangle represented a weak relationship and a blank cell corresponded to in insignificant or nonexistent one.

This matrix proved invaluable in telling the scorecard story.  Ask that same person who's working on yield improvement "why are you doing this?" and they'll likely tell you:

"By improving yield, and reducing yield variability I'll be helping to improve our delivery performance and helping us to grow in new, cost competitive markets.  Also, it will help the manufacturing people reduce lead time since they'll be better able to plan production.  And the quality folks tell me that low yields and high yield variability is an important contributor to our defects.  All of these improvements will make our customers happier and they'll want to buy more of our products.  The more they buy, the more money we'll make and the faster we'll grow.  And the more Analog makes, the bigger my quarterly bonus and when we add that new fab, I'll have a good chance of promotion to fab manager."

Now to me, that's the telling of a great scorecard story.
